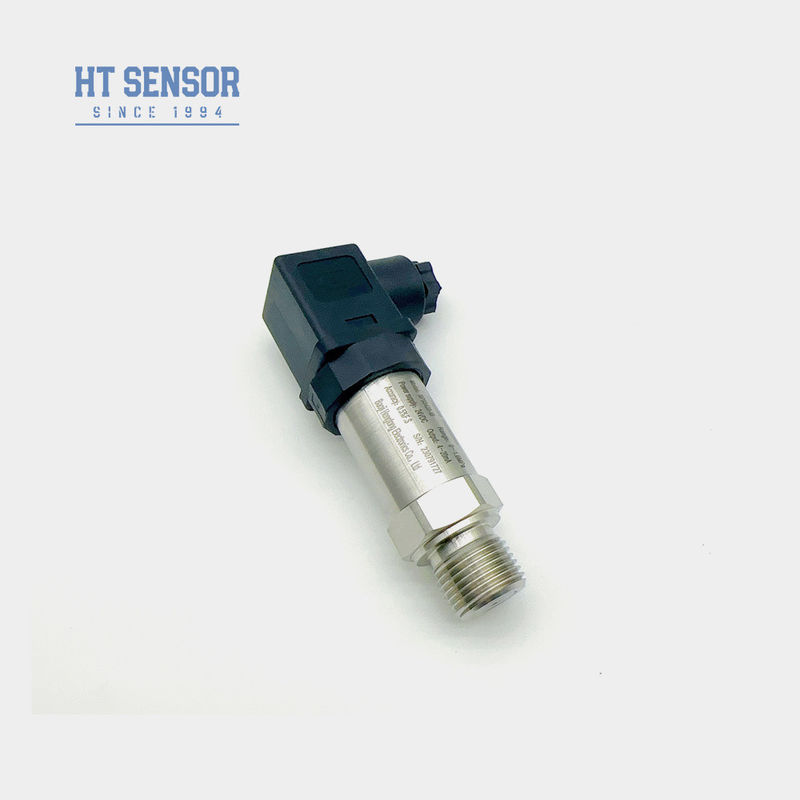

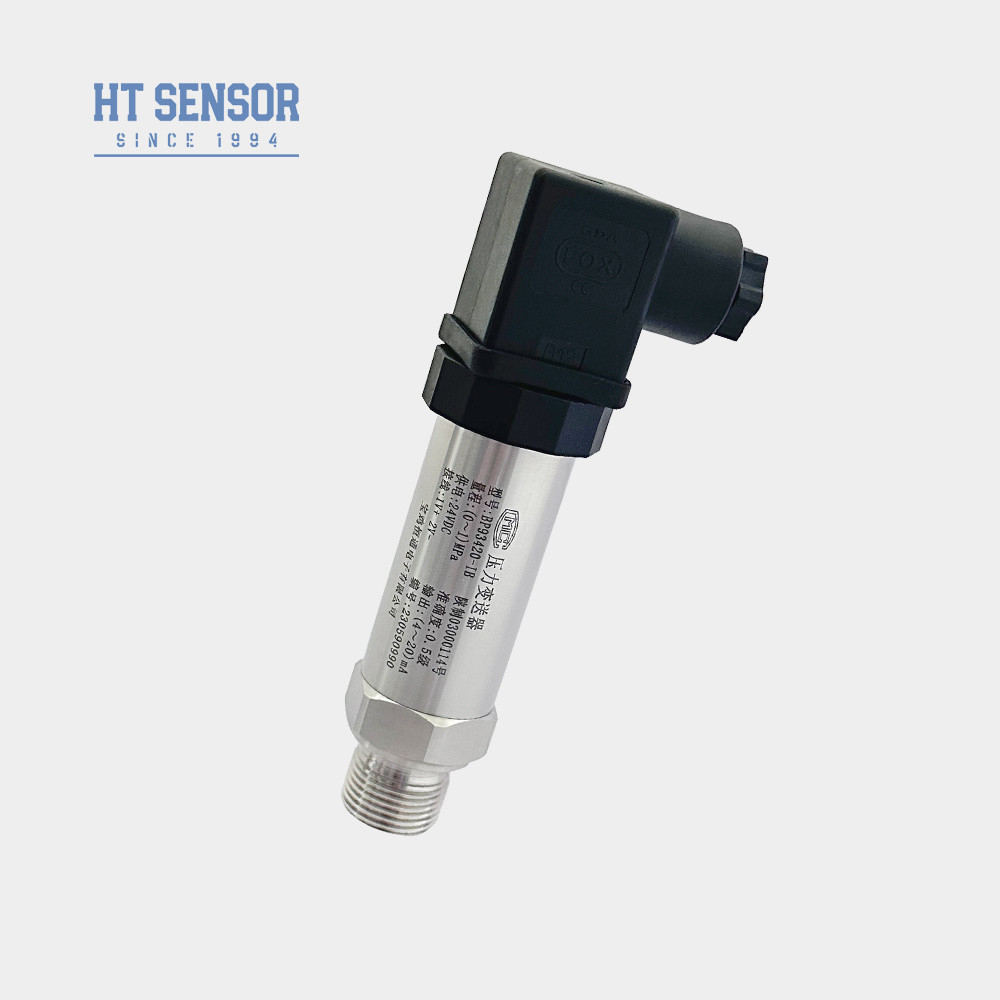

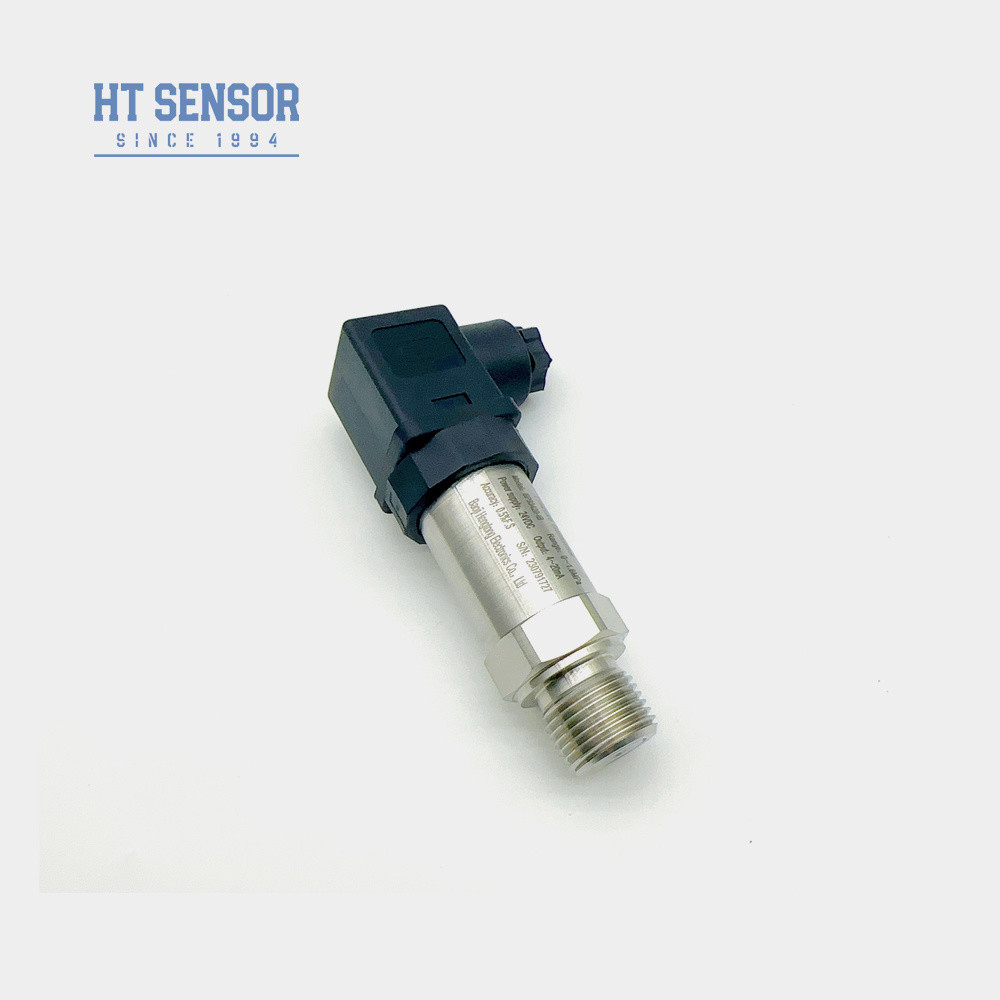

BP93420IB Pressure Transmitter
Introduction:
The BP93420IB pressure transmitter utilizes an HT-series diffused silicon, oil-filled isolated core as its signal sensing element. The signal processing circuitry is housed within a stainless steel enclosure, where it converts the sensor signal into a standard output signal.
This product undergoes strict testing and aging screening at the component, semi-finished, and finished-product stages, guaranteeing stable and reliable performance.
Product Features:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms
2. Compact and lightweight design
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure
5. Adjustable zero and full-scale
Applications:
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
2. Applied in the marine and aviation industries
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
4. Utilized in hydraulic and pneumatic control systems
| Performance Parameters: |
| Measurement Range |
-100kPa…0kPa ~ 10kPa…100MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
0.1%FS |
| Hysteresis |
0.1%FS |
| Long-Term Stability |
±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift |
±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex db IIC T6 Gb |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.15kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
-
When selecting the product, please ensure the measured medium is compatible with the wetted parts of the product.
-
Please note that explosion-proof versions do not include digital display heads unless specified when ordering.
-
For transmitters equipped with an LCD or LED display head, the power supply voltage must not be lower than 20 VDC.
-
To ensure reliable operation, it is recommended to install lightning protection devices on-site and ensure both the product and power supply are properly grounded.
-
The standard Fluoroelastomer (FKM) O-ring is rated for a temperature range of -20°C to 250°C. For operating temperatures below -20°C, an EPDM O-ring must be selected.
-
The default cable length is 0 meters, supplied in polyethylene (PE) material unless otherwise specified. Alternative cable materials are available upon request at the time of order.
-
For applications involving strong vibration, sudden impact, strong electromagnetic interference, or radio frequency interference, please inform us and specify these conditions in the order.

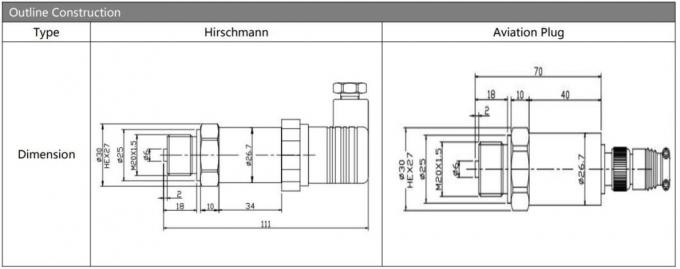

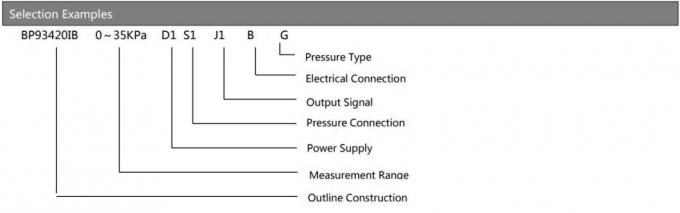

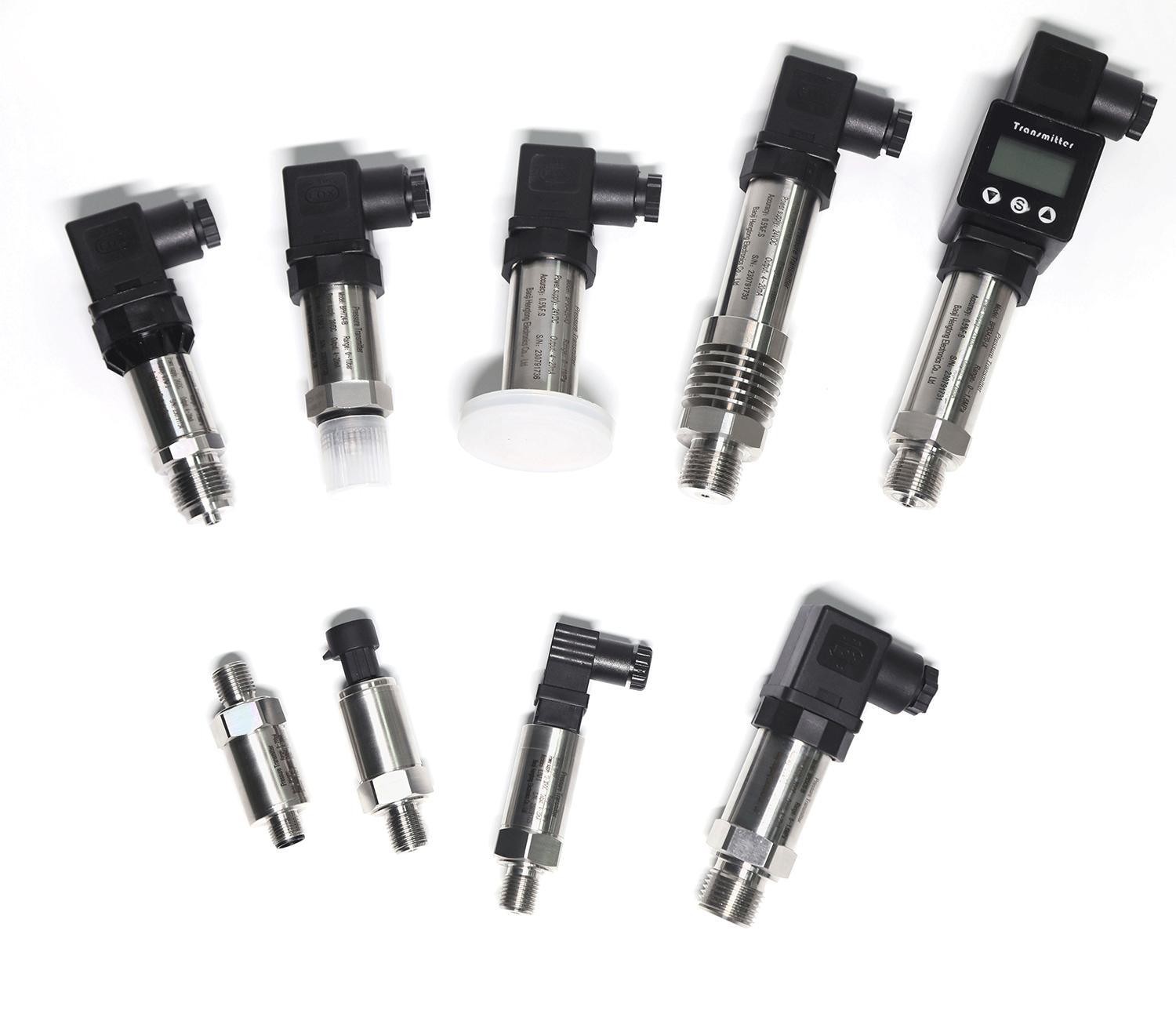

| Order Guide |
| BP93420XX |
Pressure Transmitter |
| |
Code |
Outline Construction |
| IB |
General Pressure Transmitter |
IX |
Display Pressure Transmitter |
| IE |
Shock-resistant Aviation Pressure Transmitter |
IIC/III |
Industrial General/ Display Pressure Transmitter |
| IF |
Moisture-proof Pressure Transmitter |
IIE/IIIE |
General/Display Pressure Transmitter |
| IN |
Air Conditioning Dedicated Pressure Transmitter |
|
|
| IC |
High-temperature Pressure Transmitter |
|
|
| IQ1/IQ2 |
Large Diaphragm /High-temperature Pressure Transmitter |
|
|
| |
Measurement Range |
-0.1. . .0~0.01...100MPa |
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |

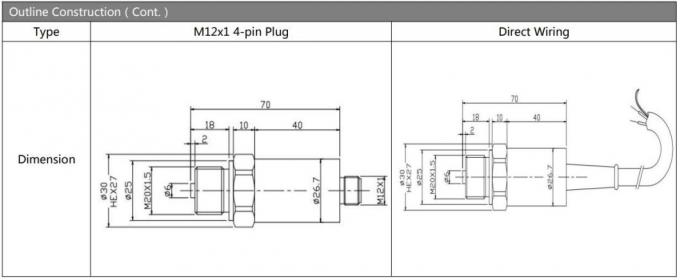

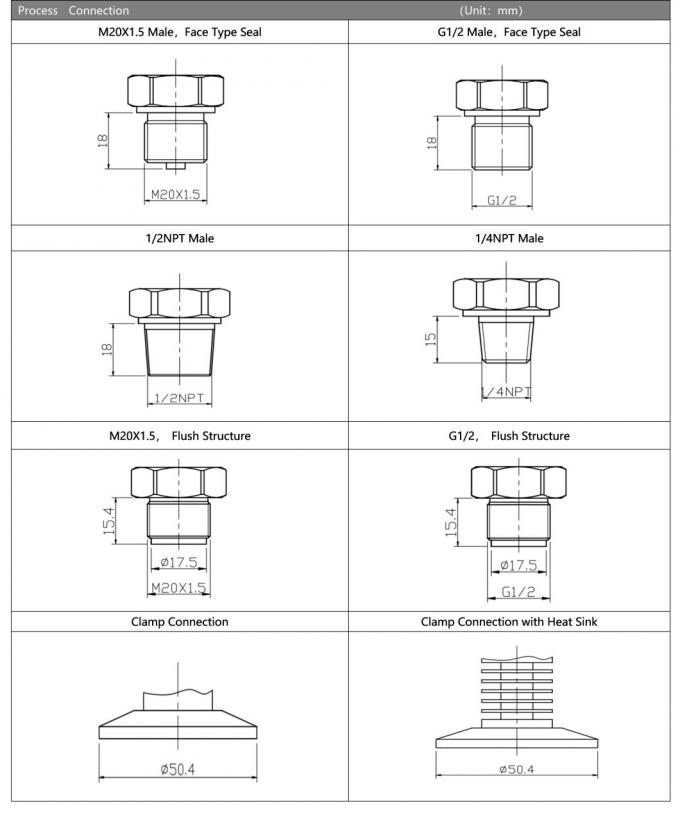

Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Other |
| |
Code |

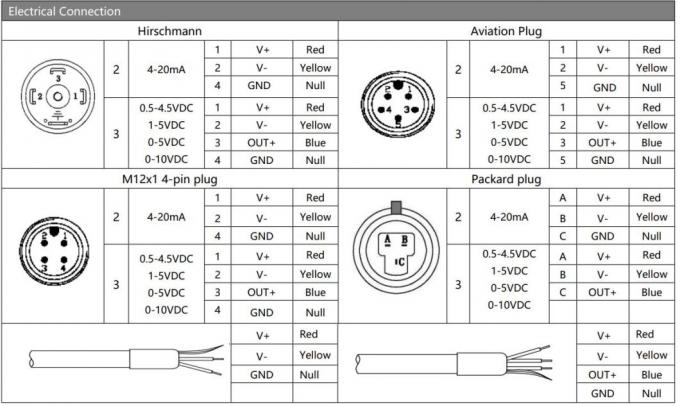

Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
2088 Industrial Casing |
| B5 |
2088 Industrial Casing with Display |
| B6 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
