BH93420-III Advanced Water Level Transmitter for Industrial Applications
Product Details
| Model No.: | BH93420-III | Basınç aralığı: | 0-1m-400 Mh2o |
|---|---|---|---|
| Ekran tipi: | NEDEN OLMUŞ | Doğruluk notu: | 0.1%,0.25% |
| IP derecesi: | IP68 | Net ağırlığı: | 1.6kg |
| Diyafram malzemesi: | 316L paslanmaz çelik | Ölçüm aralığı: | 0 ~ 10m… 400mh2o |
| Basınç türü: | Ölçüm basıncı, mutlak basınç, mühürlü basınç | Aşırı yük: | ≤ 2x dereceli aralık |
| Doğruluk @ 25ºC: | ±% 0.1 (tip) ±% 0.2 (maks.) | Çalışma sıcaklığı: | -20~80oC |
| Saklama sıcaklığı: | -30 ~ 100ºC | Konut malzemesi: | Dökme alüminyum, paslanmaz çelik 1CR18ni9ti |
| Çıkış sinyali: | Hart ile 4 ~ 20mma | ||
| Vurgulamak |
HT Sensor water level transmitter IP68,BH93420-III water level sensor 0.1% accuracy,submersible water level transmitter with warranty |
||
Product Description

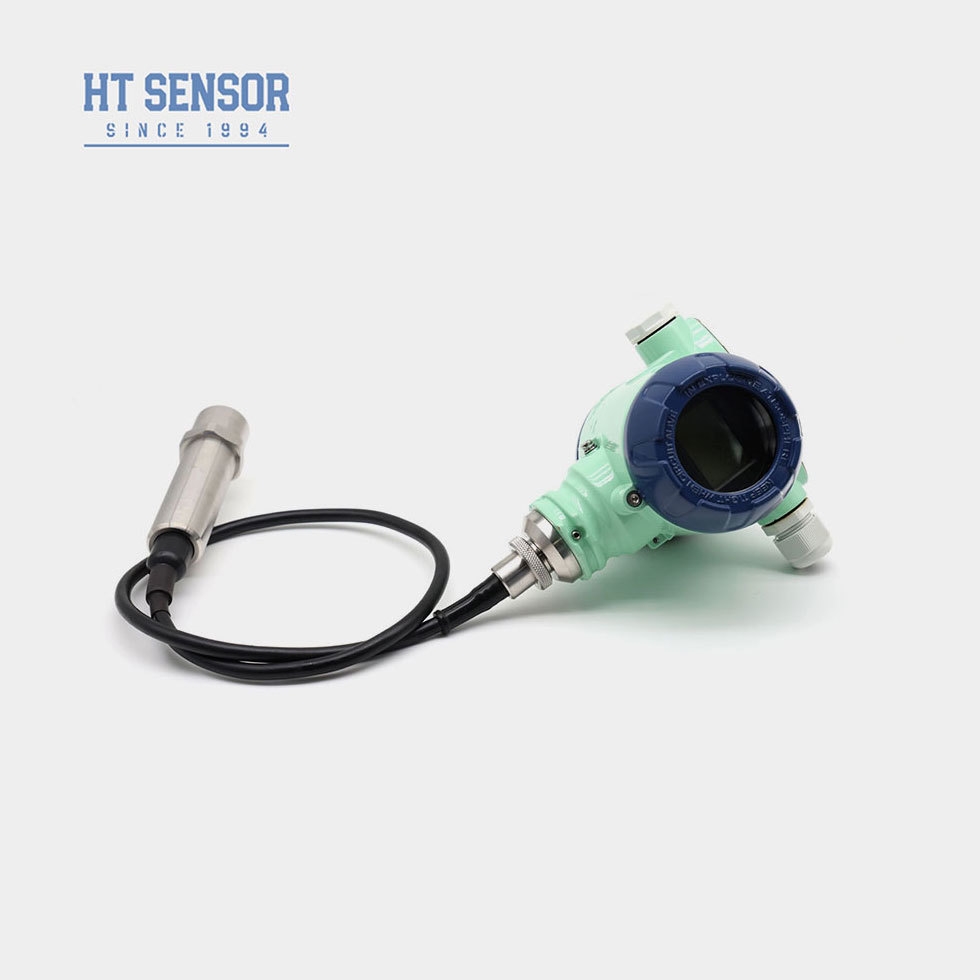

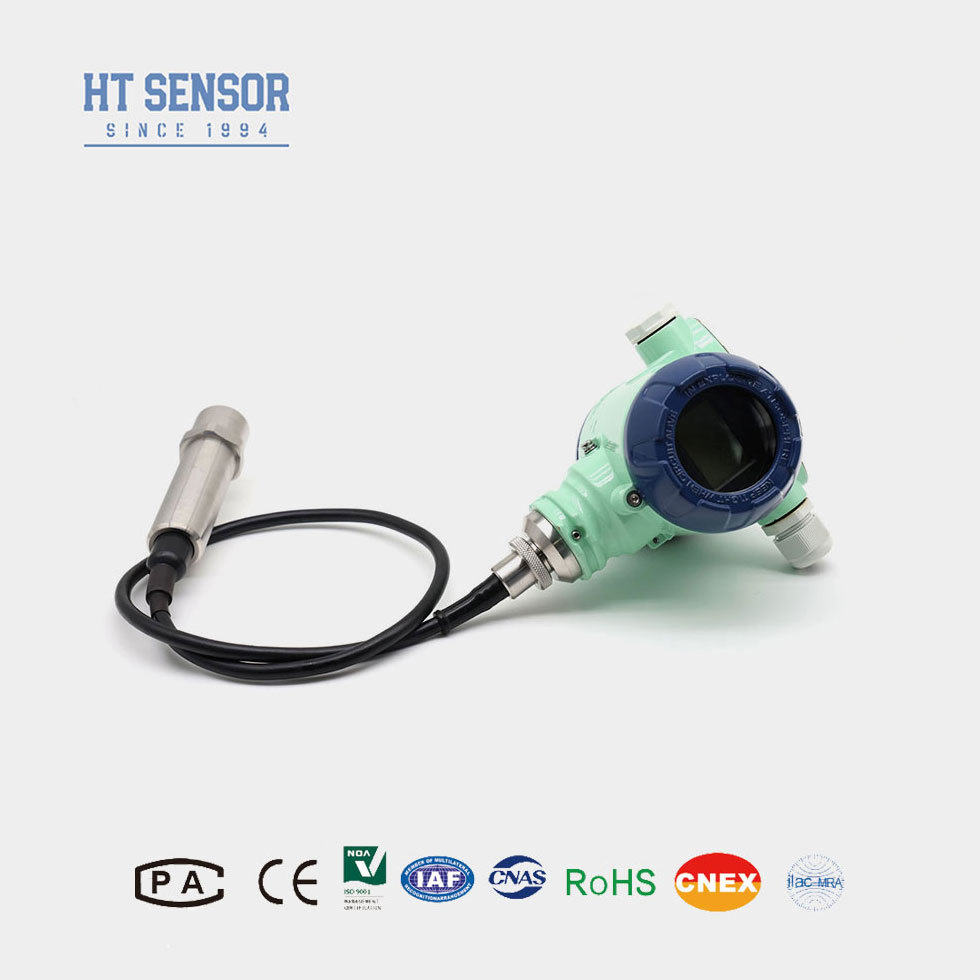

The BH93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.
- HART communication protocol output with display capability
- High accuracy (±0.1%) with excellent stability
- Explosion-proof rating: ExiaIICT6
- High protection level: IP68
- Multiple cable options: PE, PTFT, PU
- Versatile structures to meet various on-site requirements
- Compatible with 316LSS and non-corrosive liquids
- Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and oil tank level monitoring
| Parameter | Specification |
|---|---|
| Measurement Range | 0~10m...400mH2O |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.1% (Typ.) ±0.2% (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Operating Temperature | -20~80ºC |
| Housing Material | Cast aluminum, Stainless steel 1Cr18Ni9Ti |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
Please ensure compatibility with measured medium and specify density when ordering.
