Ürün Açıklaması

 ht19 Micro-Pressure Pressure Sensor for transmitter

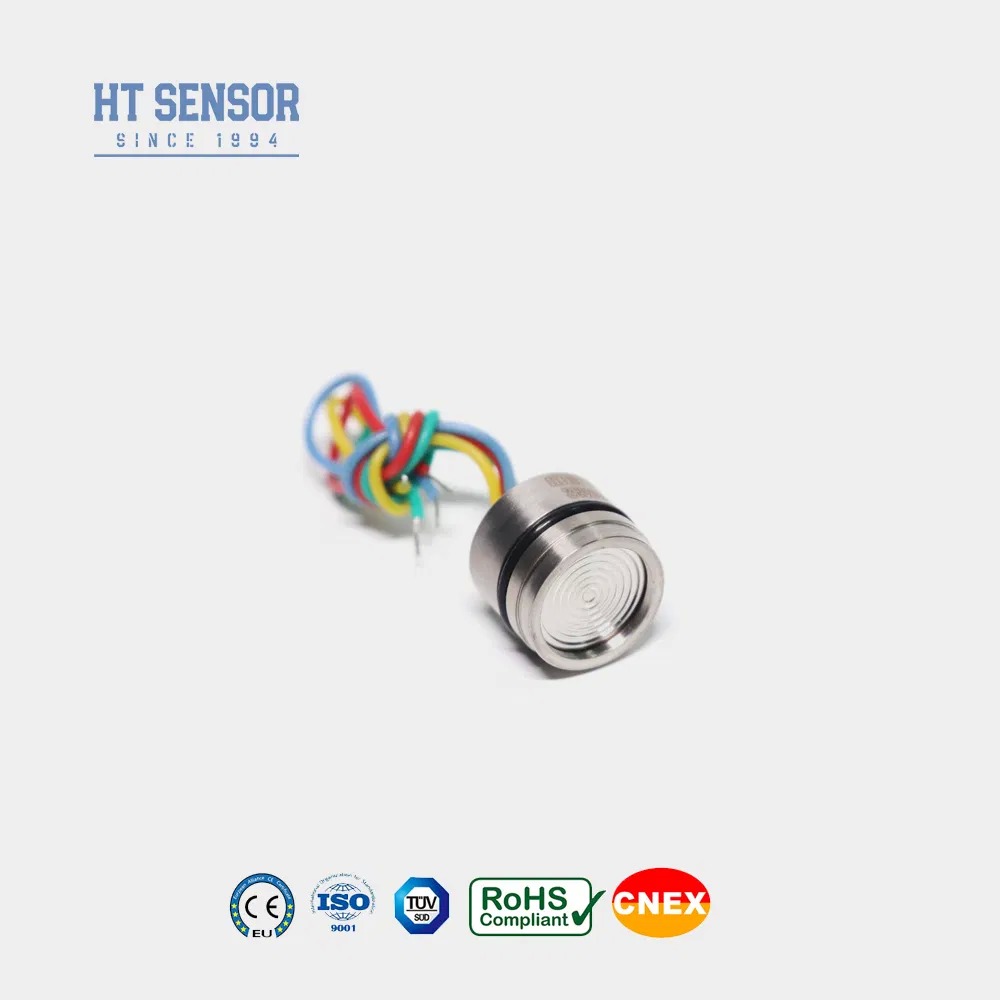

HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 0
19mm Silicon Piezoresistive Pressure Sensor

Introduction:
HT19F functions as a silicon piezoresistive pressure sensor ,with a core consisting of a highly stable diffused silicon element,. It effectively measures
the pressure of liquids and gases by transmitting the pressure of the tested medium to the silicon diaphragm through an isolation diaphragm and silicon oil.The sensor's versatility finds extensive use in air compressors and refrigerationsystems

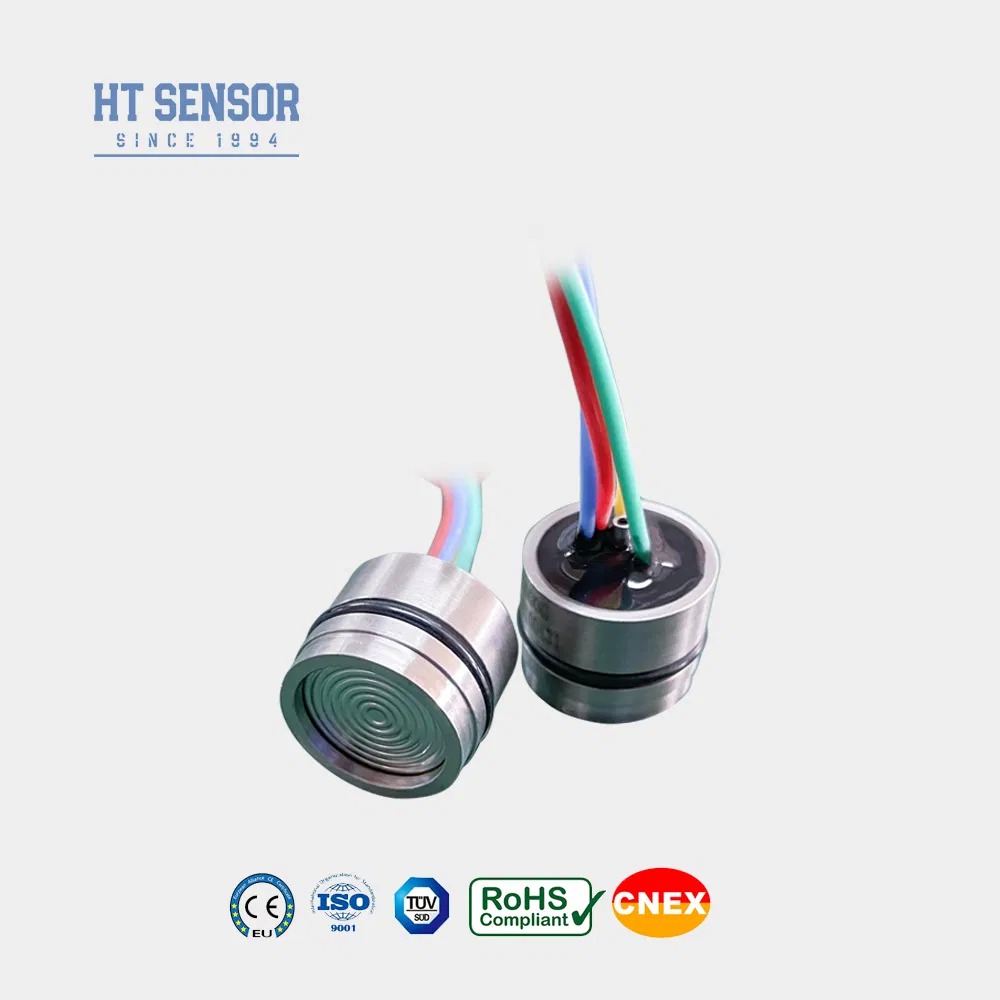

HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 1
HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 2

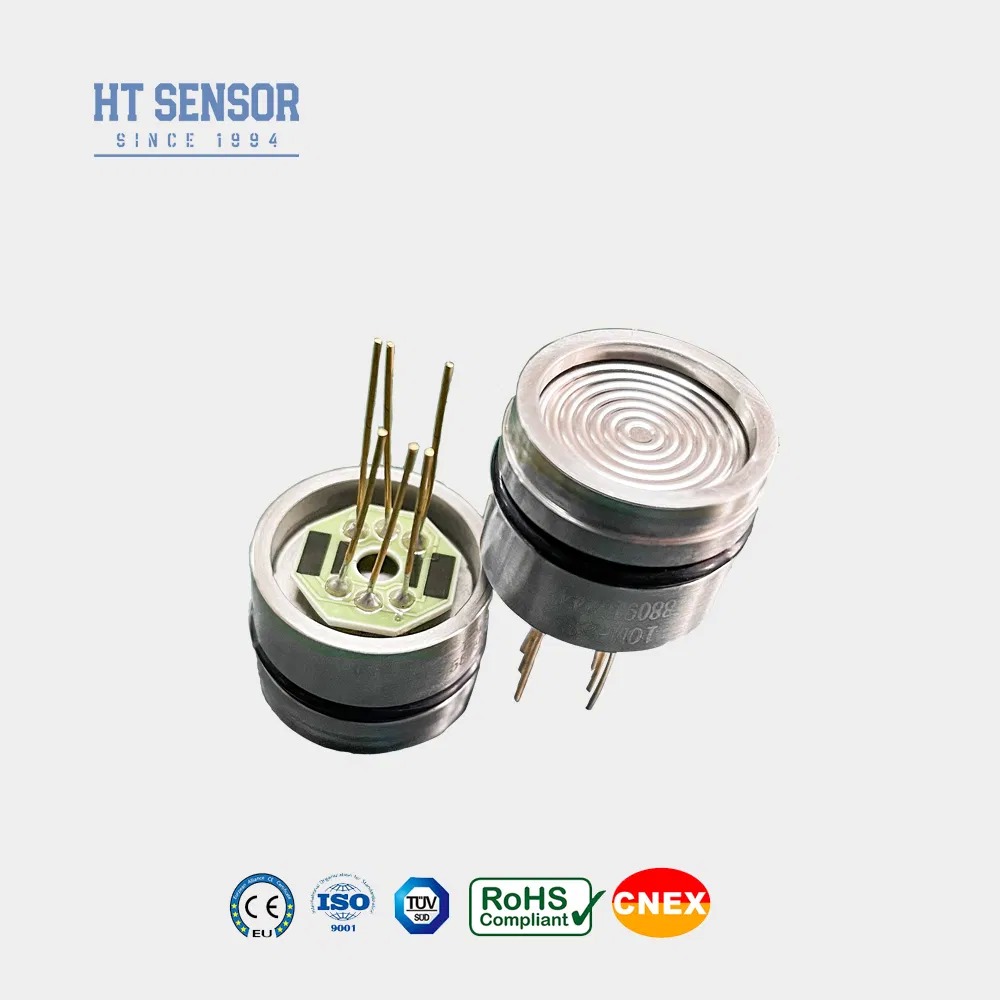

HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 3
HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 4


Product  Features:
1.Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphragm
2.Employing thick-film circuits for temperature compensation and zero-point correction
3.outstanding reliability, repeatability, and stability
Applications:
1.Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
2.Applied in various industrial process sites, including petroleum, chemical, metallurgy, power, and hydrology
3.Used in marine and aviation industries
4.Suitable for hydraulic and pneumatic control systems
5.Utilized in process control applications
Electrical performance:
1.Power Supply: ≤2mA DC (Typical 1.5mA DC)
2.Input Impedance:3KΩ~6KΩ
3.Output Impedance:2.5KΩ~6KΩ
4.Electrical Connection:Gold-plated Kovar pins or 100mm high-temperature wires.
Performance Parameters:
Range Gauge(G) 10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A) 100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS,20MPaS.40MPaS.60MPaS.100MPaS
  Typ Max Unit
Nonlinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero  Output   0±1 0±2 mV
Span Output   ≤20KPa 50±10 50±30 mV
≥35kPa 100±10 100±30 mV
Temperature Error-Zero ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Temperature Error-Span ≤20KPa ±1 ±2 %F.S
≥35kPa ±0.5 ±1 %F.S
Compensated Temp. ≤20KPa 0~50 ºC
≥35kPa 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 120MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile ring or Fluoro ring
Filling Medium Silicon Oil
Weight about 28g
The parameters are tested under the following conditions:    1.5mA @ 25°C

Outline Construction

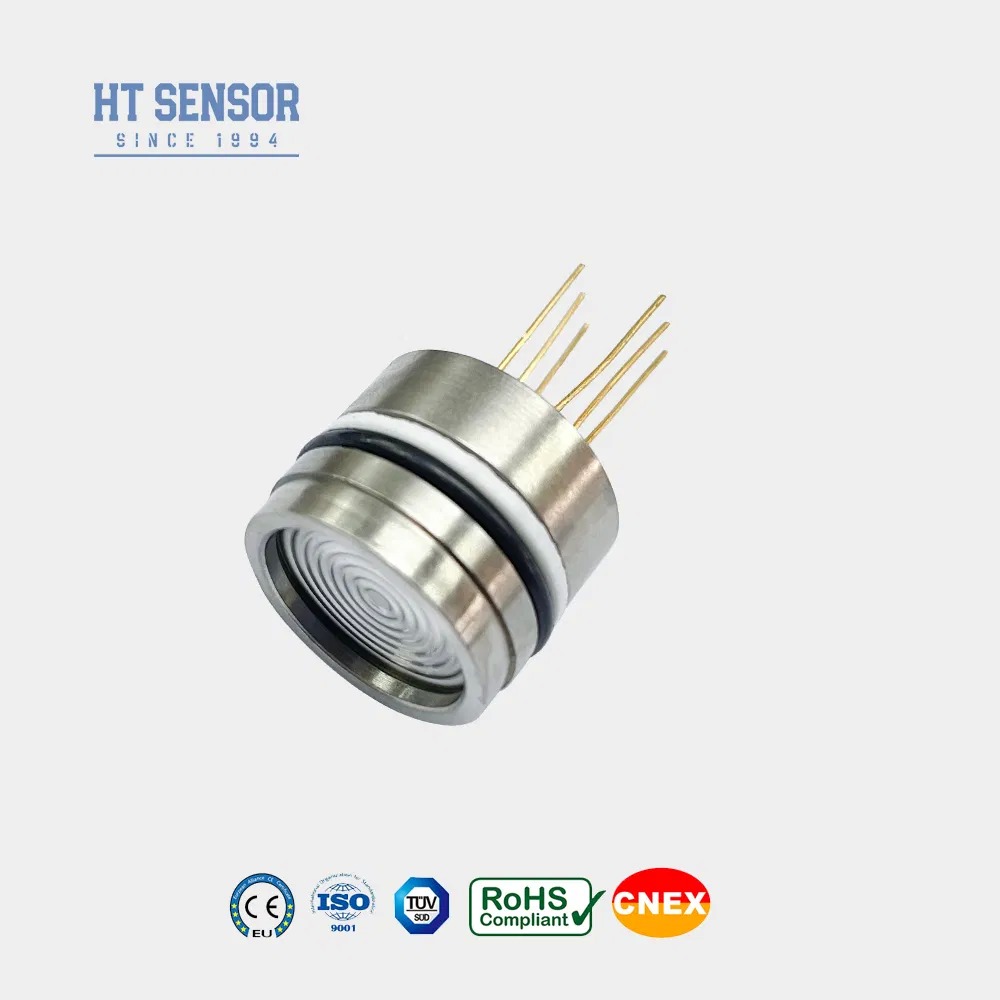

<3.5MPaS HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 5
≥3.5MPaS
<40MPaS		 HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 6
≥40MPaS HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 7

Electrical connection and compensation




HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 8






Selection Examples
HT19 Micro-Pressure Pressure Sensor for transmitter Level Sensor 9
Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
     required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when      placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into          the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
