Detay Bilgi

Model NO.:	HT15V	İçin:	Dağınık Silikon Basınç Transmitteri
Çıkış sinyali tipi:	Analog Tip	üretim süreci:	Entegrasyon
Malzeme:	Paslanmaz çelik	İplik türü:	HAYIR
Kablo tipi:	Dört Telli	Ölçüm Ortamı:	Gaz ve Sıvı
IP derecelendirmesi:	IP65	Özelleştirilmiş:	Özelleştirilmiş
Anahtar Kelimeler:	Mini Sensör	Tedarik:	5-10VDC
Tel:	13mm silikon tel	Çıkış:	mv işareti
Taşıma Paketi:	karton	Şartname:	15mm
Ticari marka:	HENGTONG	Menşei:	Çin
GTİP Kodu:	9026209090	Üretim kapasitesi:	50000 ADET / Yıl
Vurgulamak:	316L stainless steel pressure transducer , oil-filled compensated pressure sensor , pressure transmitter sensor with warranty

Ürün Açıklaması

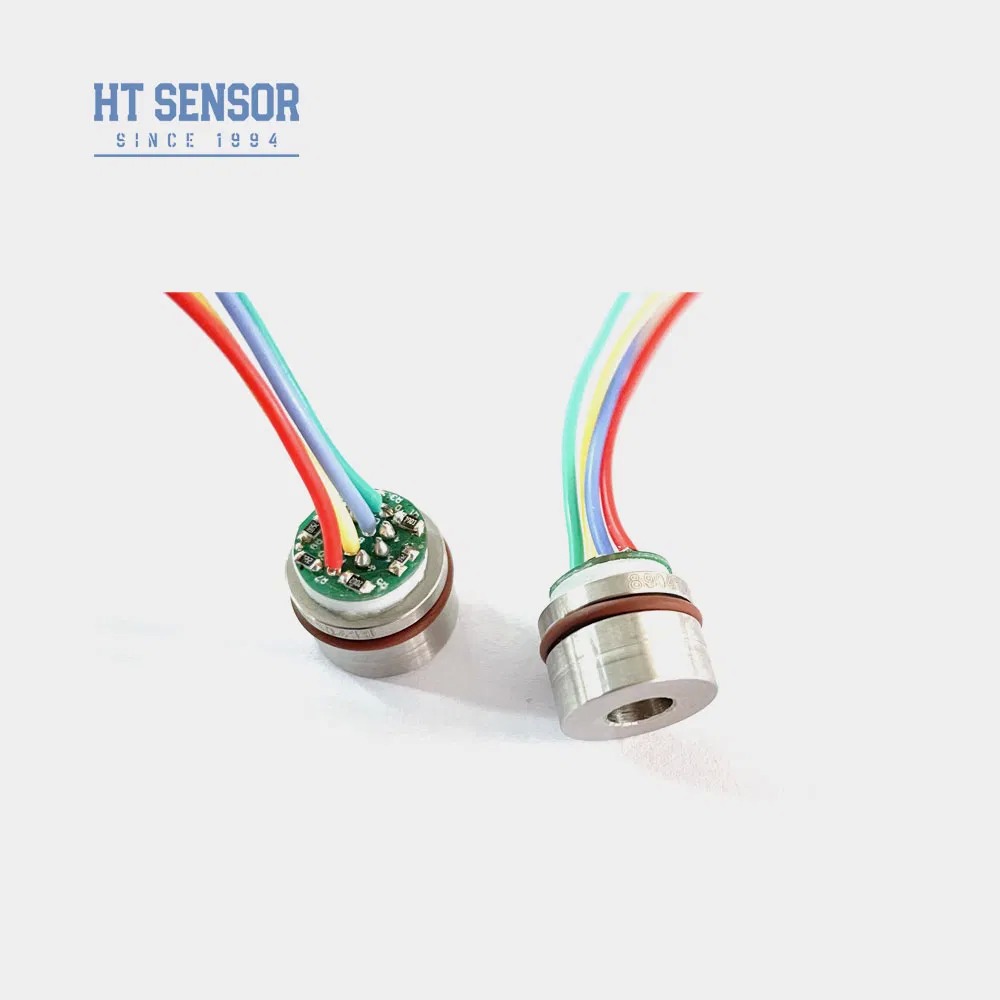

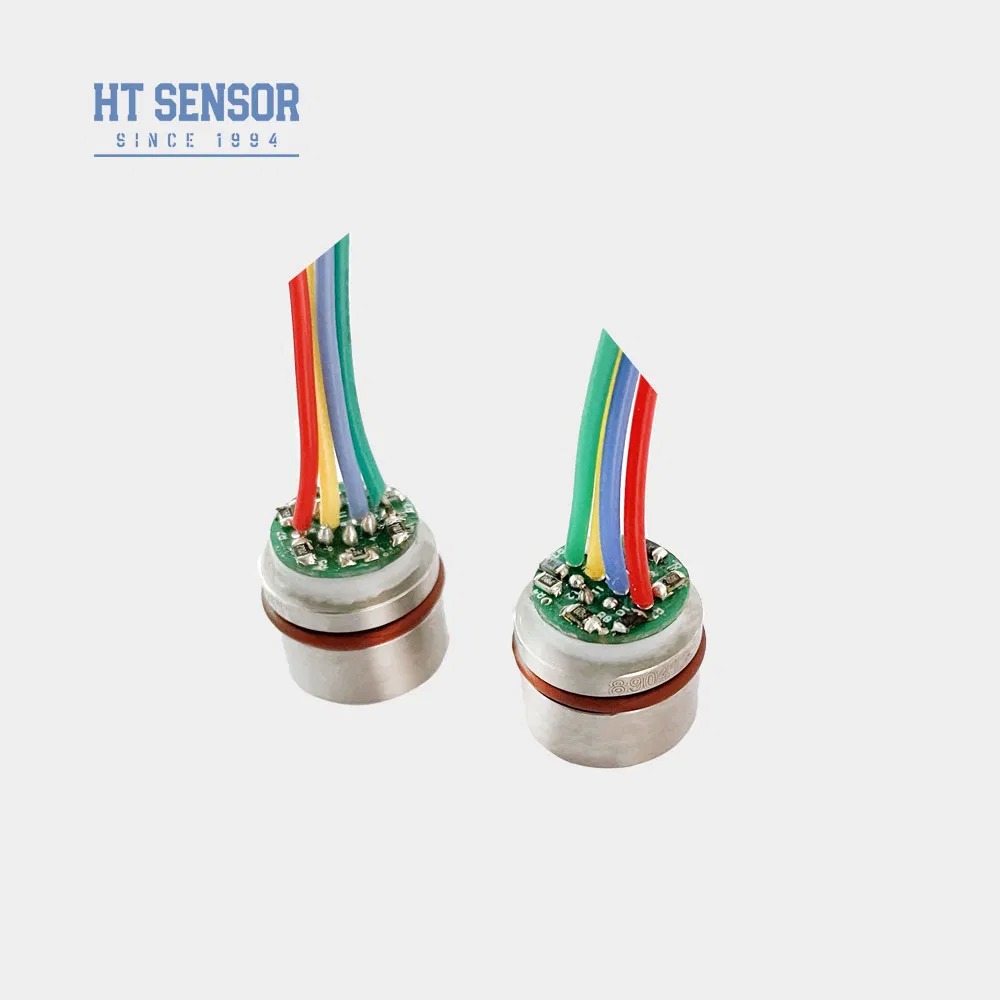

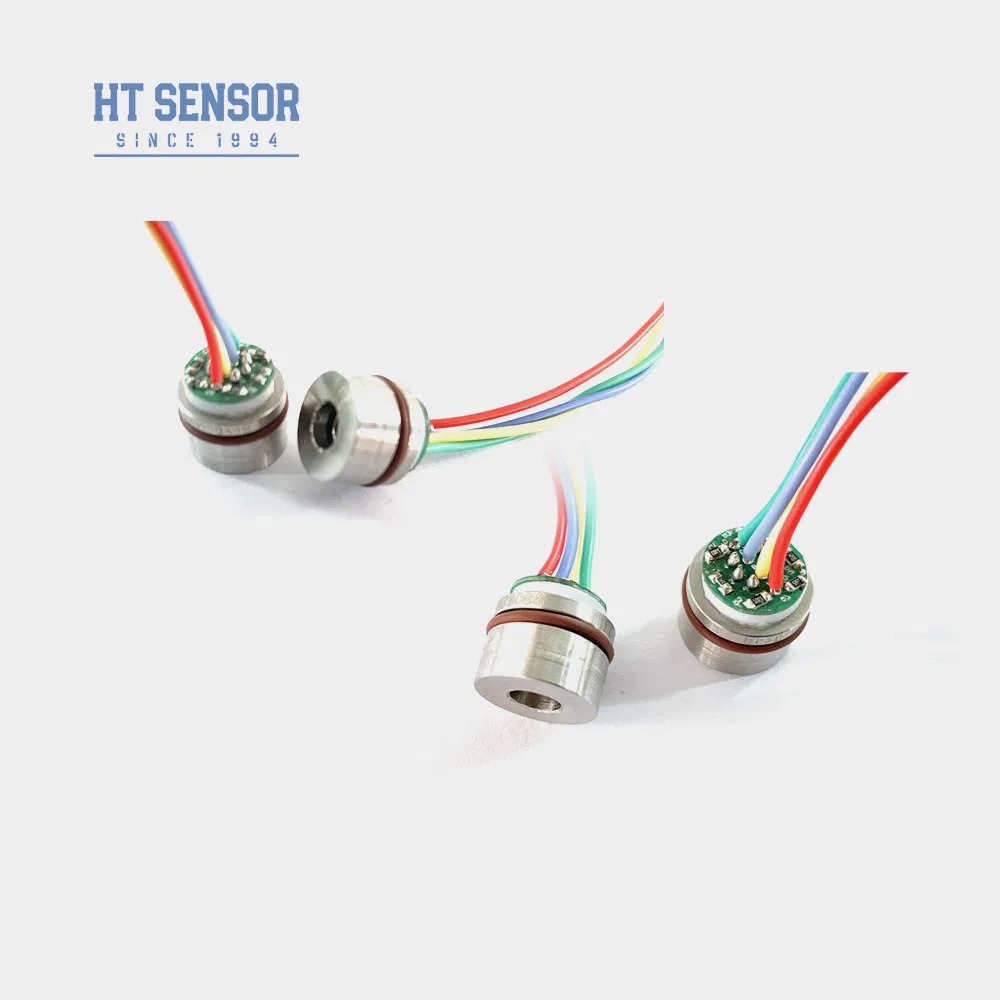

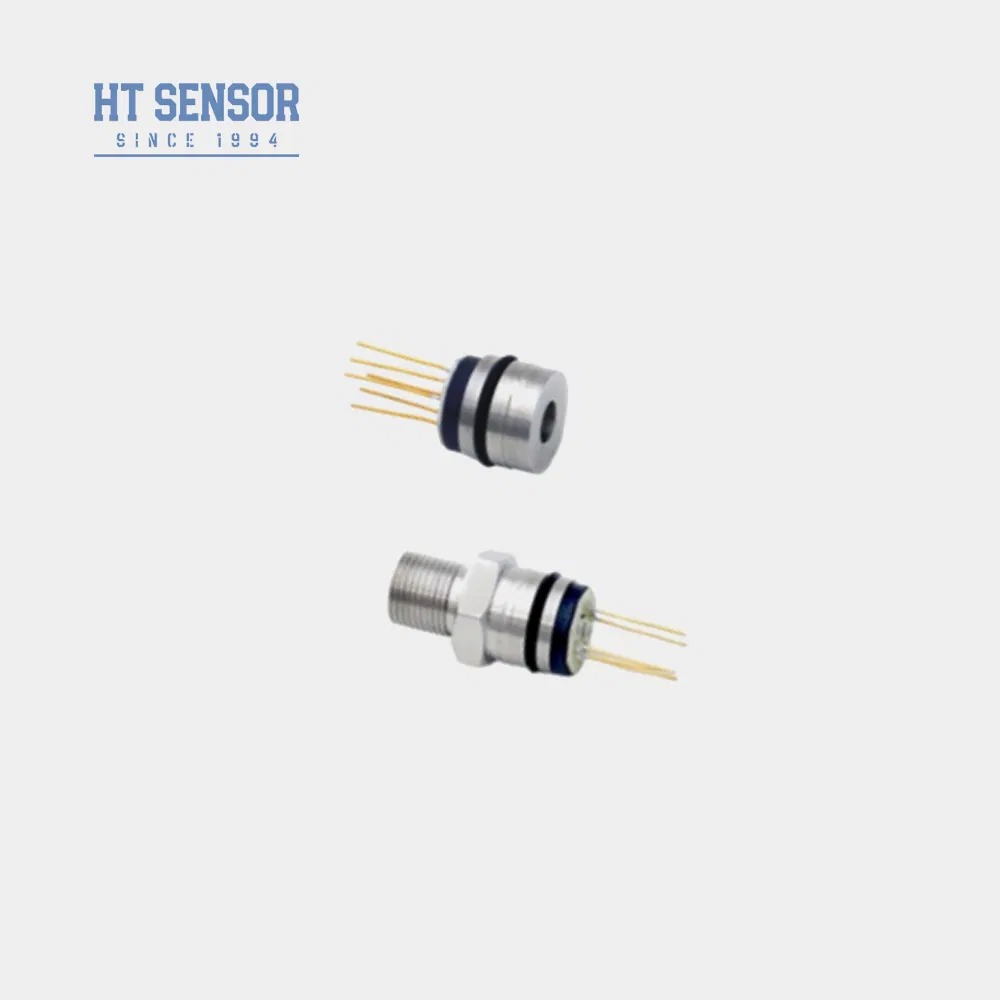

316L stainless steel with compensated oil-filled sensor pressure transducer

HT15V Silicon Piezoresistive Pressure Sensor

Introduction:
HT15V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .

Product Features:

Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
Wide measuring range 0~350KPa~60MpaS
High reliability and excellent stability
Constant voltage supply

Applications:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Compact design, ideal for applications with limited space
Used in process control systems for monitoring and controlling pressure
Commonly used in refrigeration systems and air compressors for pressure measurement

Electrical performance:

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:100mm high-temperature wire,ribbon cable

Performance Parameters:
Measurement Range	Gauge(G)	350KPa,1000KPa,2000Kpa
	Absolute(A)	350KPaA,700KPaA,1000KPaA,2000KPaA
	Sealed(S)	3500KPaS,7MPaS,10MPaS
	Typ		Max	Unit
NonLinearity	±0.15		±0.3	%F.S
Repeatability	0.05		0.1	%F.S
Hysteresis	0.05		0.1	%F.S
Zero Offset Output	0±1		0±2	mV
Full Scale Output	100±1		100±2	mV
Zero Offset Temp. Drift	±0.8		±2	%F.S
Full Scale Temp. Drift	±0.8		±2	%F.S
Compensated Temp.	0~70			ºC
Operating Temperature	-20~80			ºC
Storage Temperature	-40~125			ºC
Allowable Overload	Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure	5X the full scale
Long-term Stability	0.2 %			F.S/Year
Diaphragm Material	316L
Insulation Resistance	≥200MΩ 100VDC
Vibration	No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock	100g,11ms
Response Time	≤1ms
O-ring Seal	Nitrile rubber or Fluoro rubber
Filling Medium	Silicon Oil
Weight	~20g
The parameters are tested under the following conditions: 10V @25ºC

Outline Construction
Dimension

Electrical connection and compensation

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

company

Q&A

1.Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.

4.Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners
.

6.Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

Sertifika:	RoHS

Min sipariş miktarı:	5
Fiyat:	20

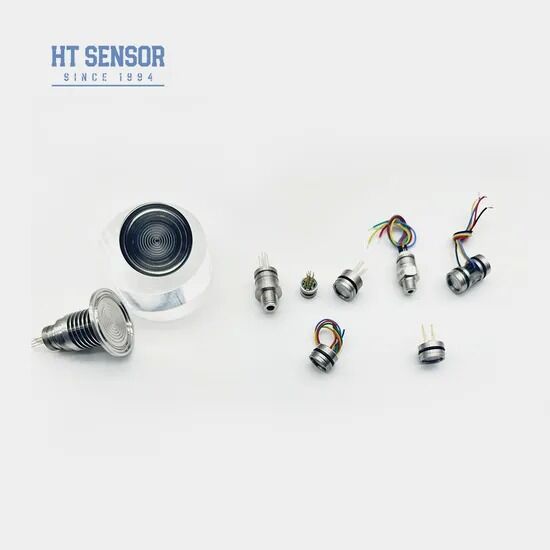

316L Stainless Steel Pressure Sensor With Compensated Oil-filled Sensor Pressure Transducer
